TRUCK DOCK LIFT CASTOR (10 FT.)

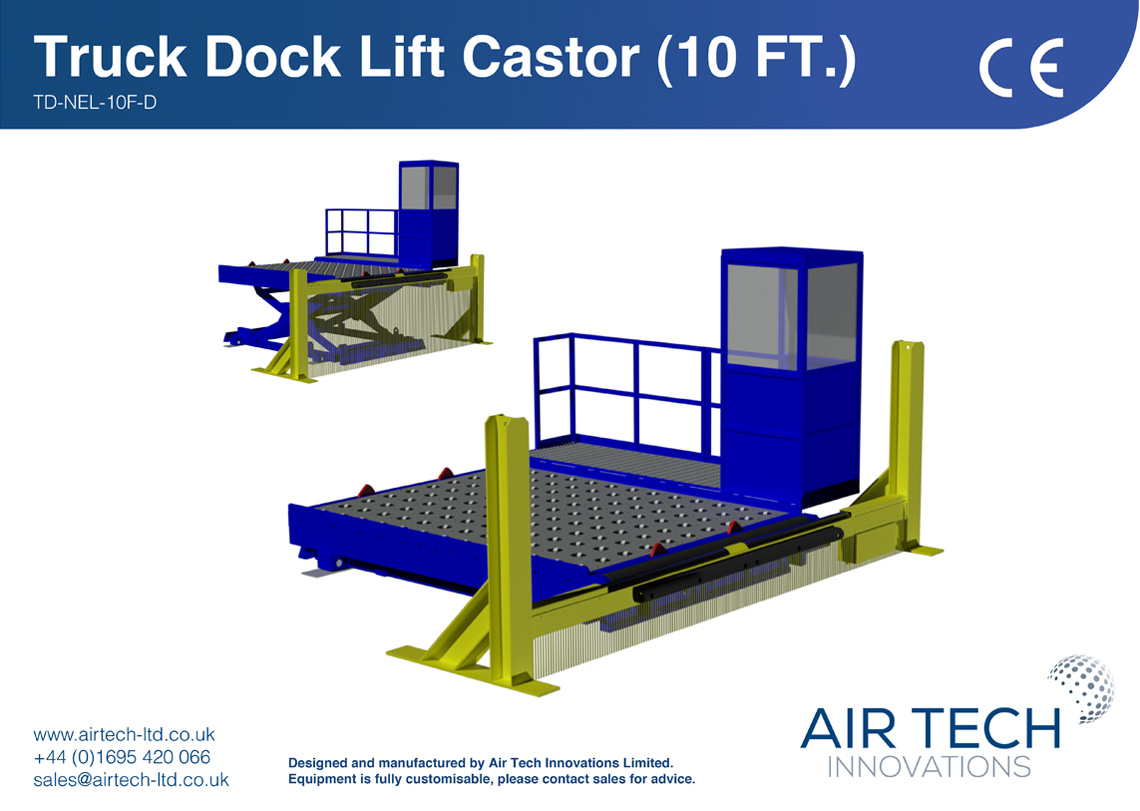

Truck Dock Lift Castor 10FT 1

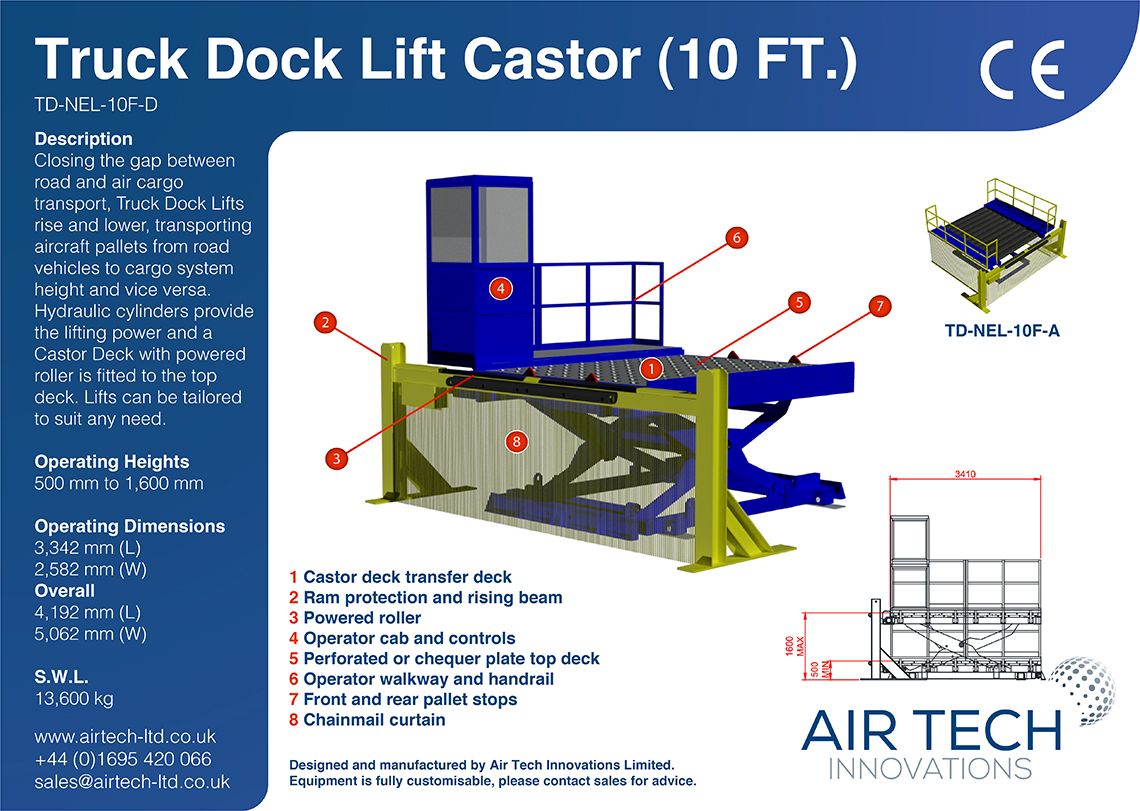

A3 TD-NEL-10F-D Specifications_300-01_1140px72dpi.jpg

Truck Dock Lift Castor (10 FT.)

Closing the gap between road and air cargo transport, Truck Dock Lifts rise and lower, transporting aircraft pallets from road vehicles to a cargo system height and vice versa. Hydraulic cylinders provide the lifting power and a Castor Deck with powered roller is fitted to the top deck. Lifts can be tailored to suit any need.

Features:

  • Castor Deck transfer deck
  • Ram protection and rising beam
  • Powered roller
  • Operator cab and controls
  • Perforated or chequer plate top deck
  • Operator walkway and handrail
  • Front and rear pallet stops
  • Chainmail curtain

Operating Heights:

500 mm (MIN)
1,600 mm (MAX)

Operating Dimensions:

3,342 mm (L)
2,582 mm (W)

Overall:

4,192 mm (L)
5,062 mm (W)

S.W.L.

13,600 kg

Interested in our Truck Dock Lift Castor (10 FT.)? Contact Us Today!
