Rising Beam

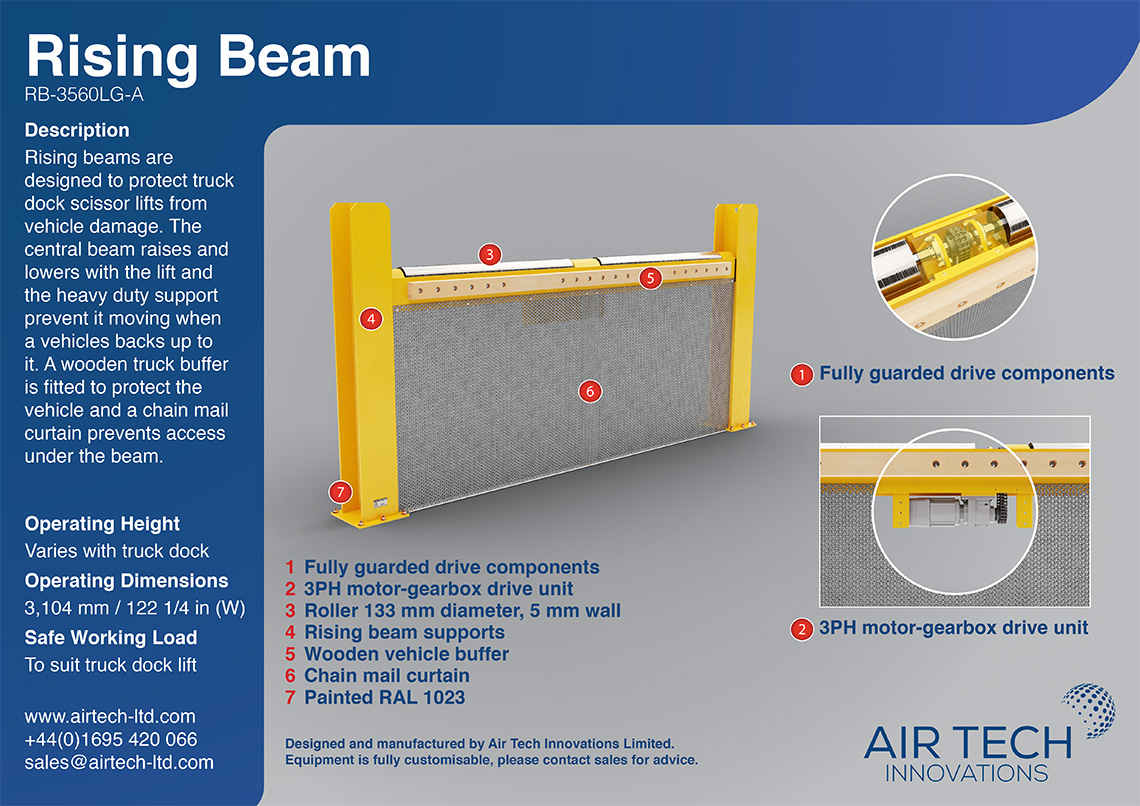

A3 RB 3560LG A 1

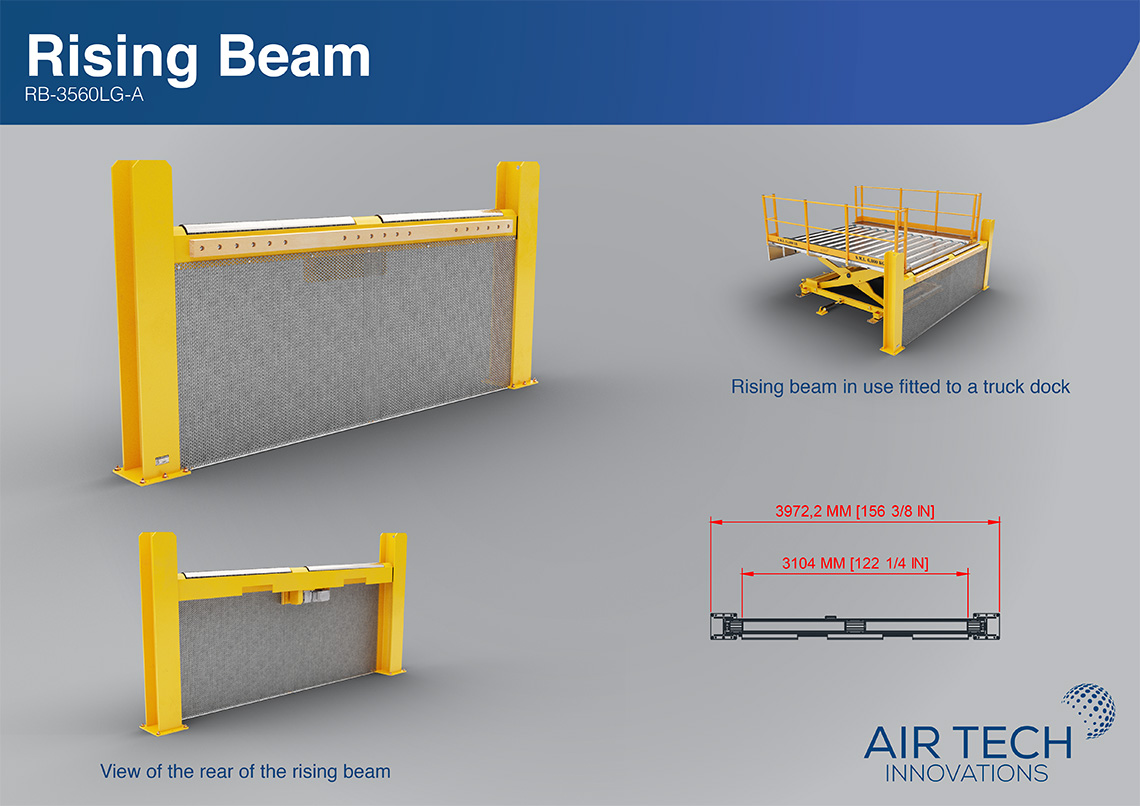

A3 RB 3560LG A 2

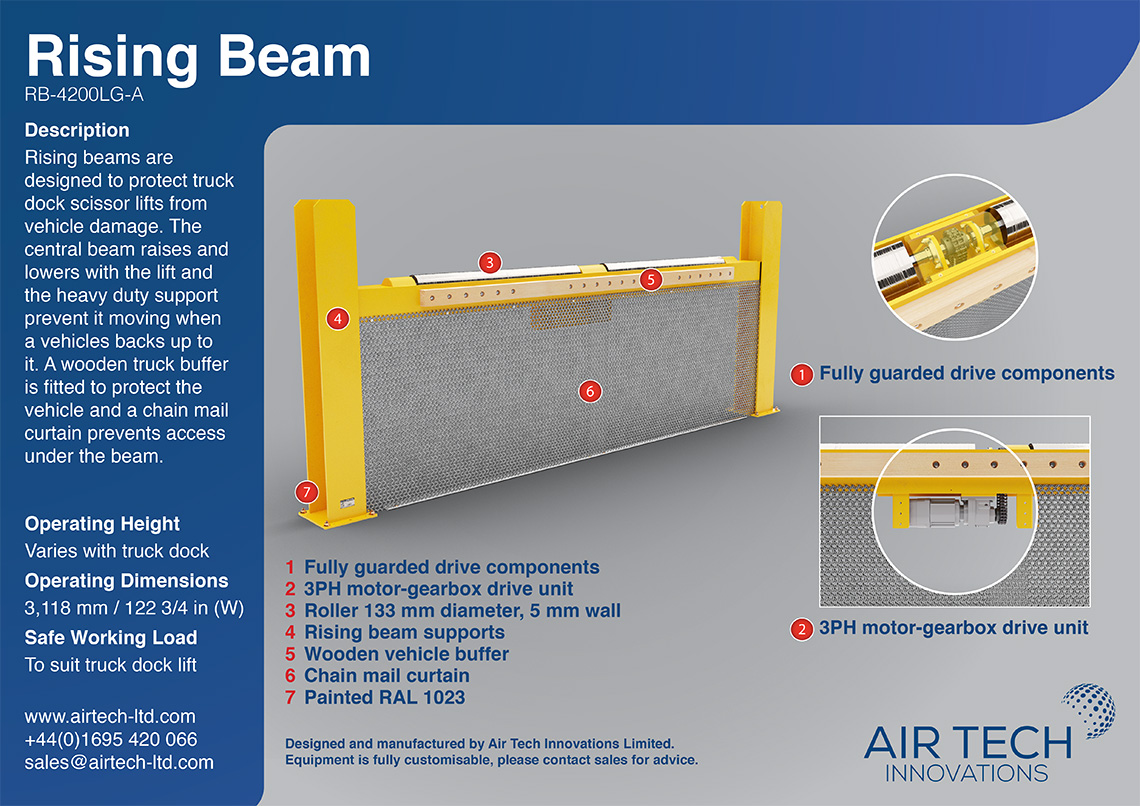

A3 RB 4200LG A 1

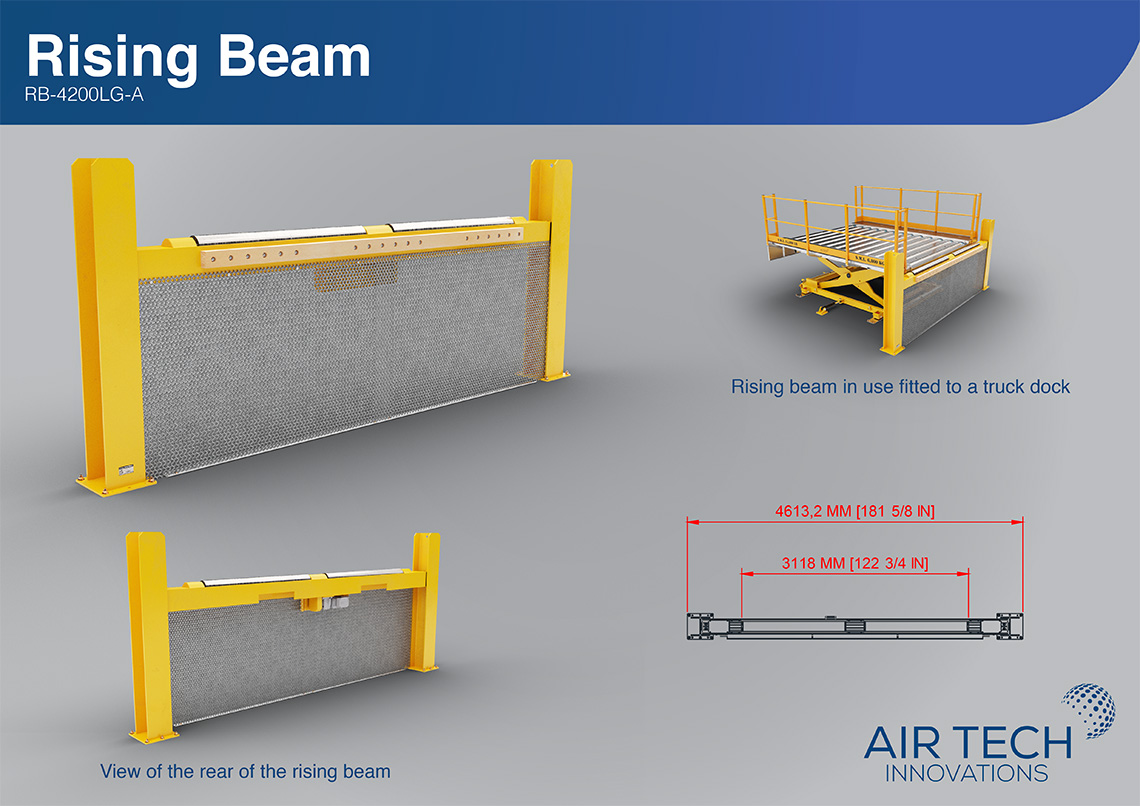

A3 RB 4200LG A 2

High-Performance Rising Beams for Enhanced Dock Safety and Efficiencym

Rising beams are designed to protect truck dock scissor lifts from vehicle damage. The central beam raises and lowers with the lift and the heavy duty support prevent it moving when a vehicles backs up to it. A wooden truck buffer is fitted to protect the vehicle and a chain mail curtain prevents access under the beam.

Operating Height

Varies with truck dock

Operating Dimensions

RB-3560LG-A - 3,104 mm / 122 1/4 in (W)

RB-4200LG-A - 3,118 mm / 122 3/4 in (W)

Safe Working Load

To suit truck dock lift



Interested in our Rising Beam? Contact Us Today!
