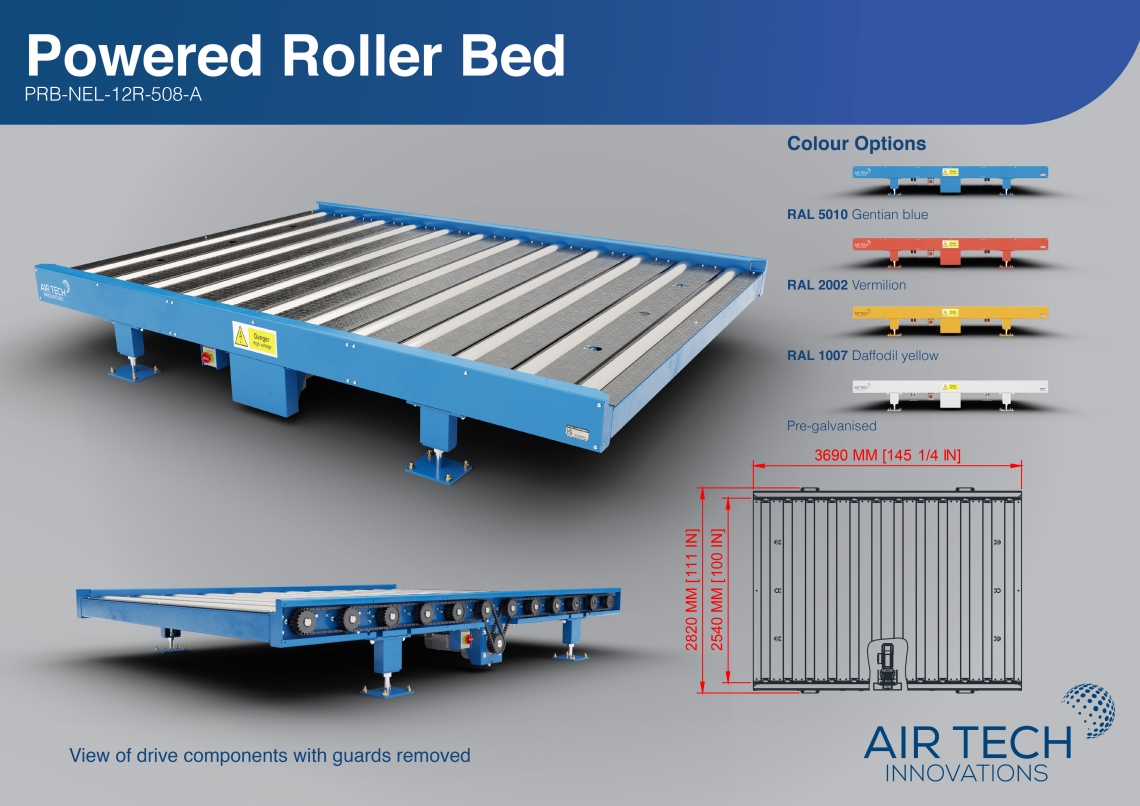

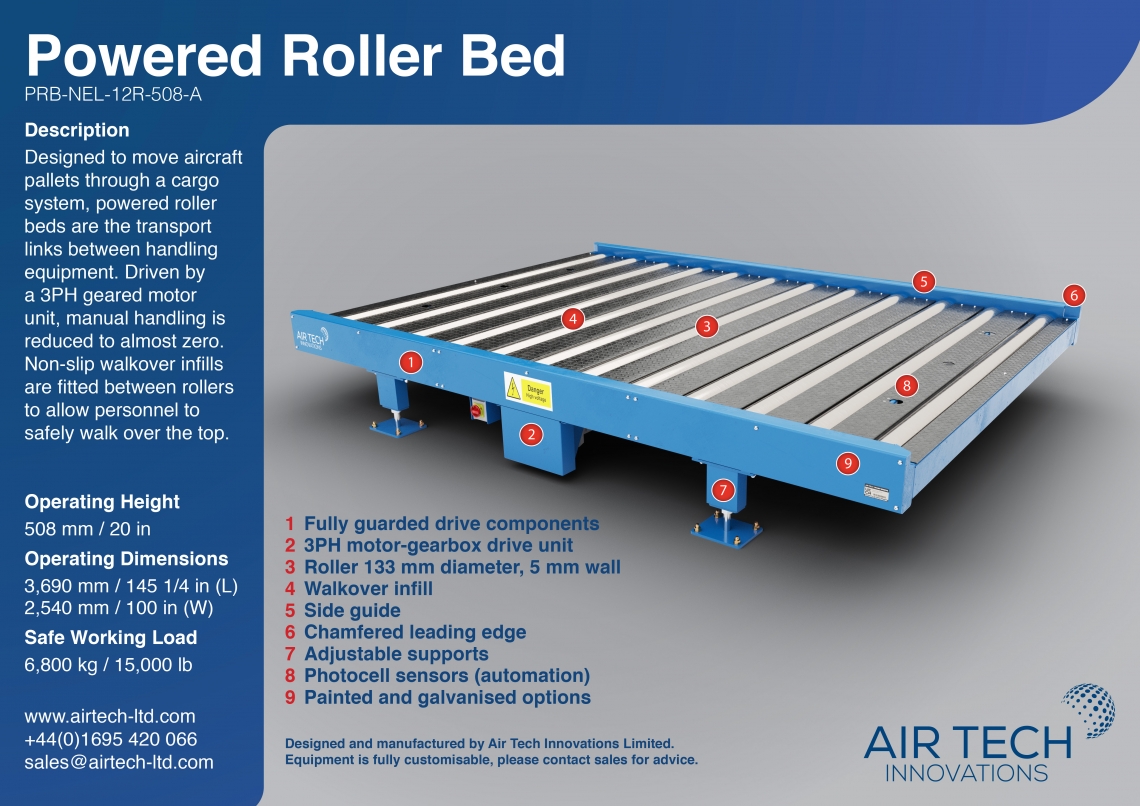

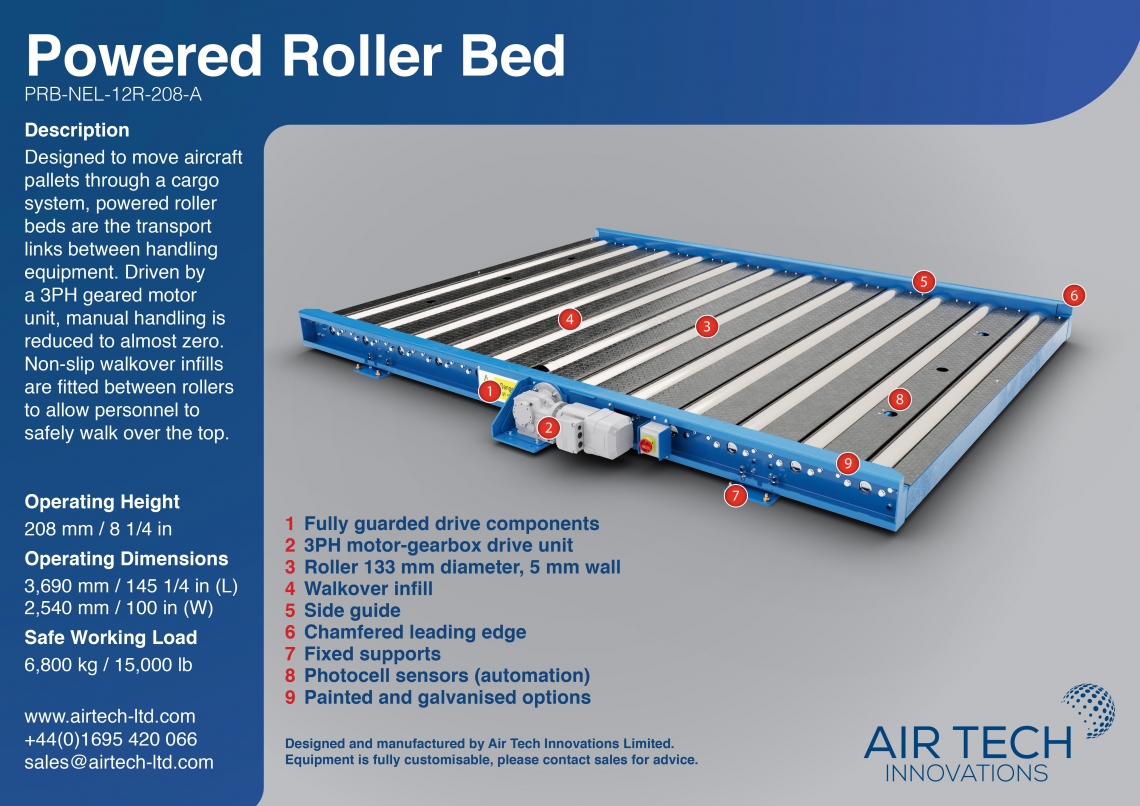

Powered Roller Bed (NEL)

Designed to move aircraft pallets through a cargo system, Powered Roller Beds are the transport links between handling equipment. Driven by a SEW geared motor unit, manual handling is reduced to almost zero. Non-slip walkover plates are fitted between rollers to allow personnel to safely walk over the top.

Features:

Fully guarded drivetrain
Drive unit (SEW)
Roller 139.7mm diameter, 5 mm wall
Walkover
Sideguide
Chamfered lead edge
Fixed supports
Photocell sensors (automation)
Painted any RAL or galvanised

Operating Height:

508 mm

Operating Dimensions:

3,660 mm (L)
2,540 mm (W)

Overall:

3,660 mm (L)
2,720 mm (W)

S.W.L.

6,800 kg

Interested in our Powered Roller Bed? Contact Us Today!
