Powered Roller Beds

A3 PRB-R-NEL-3660-A Image_300-01_1140px72dpi.jpg
A3 PRB-R-NEL-3660-A Specifications_300-01_1140px72dpi.jpg

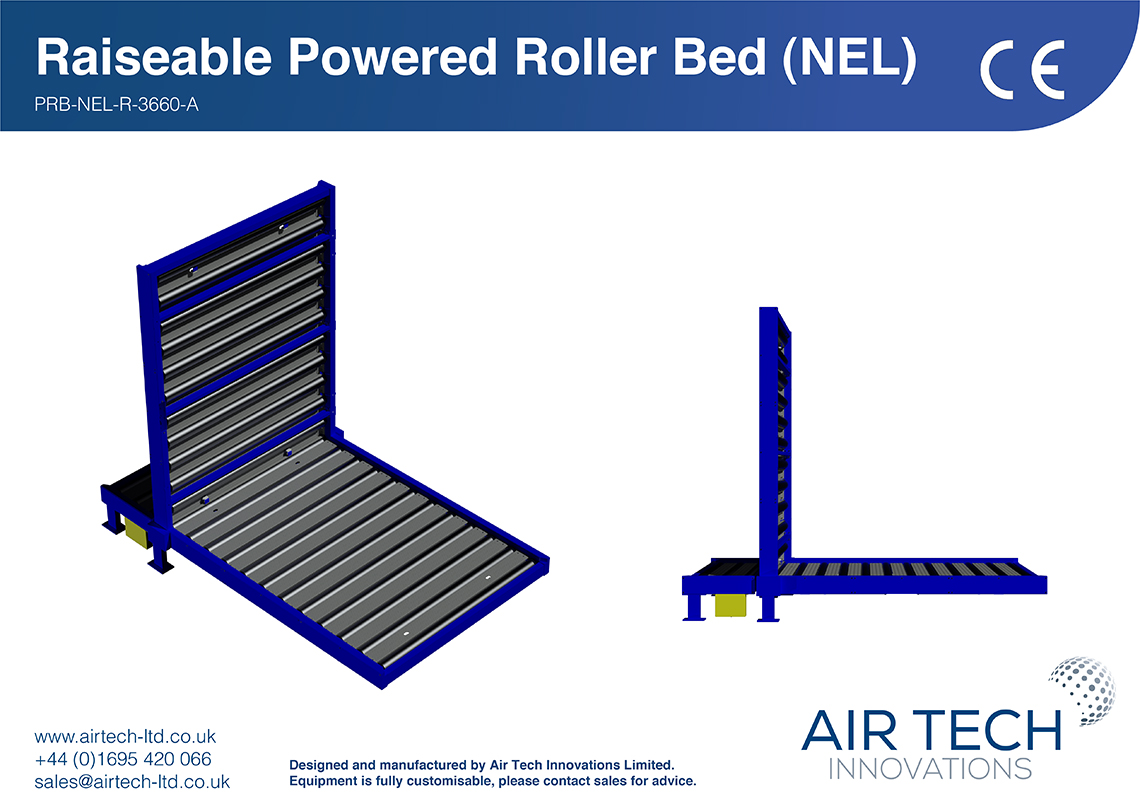

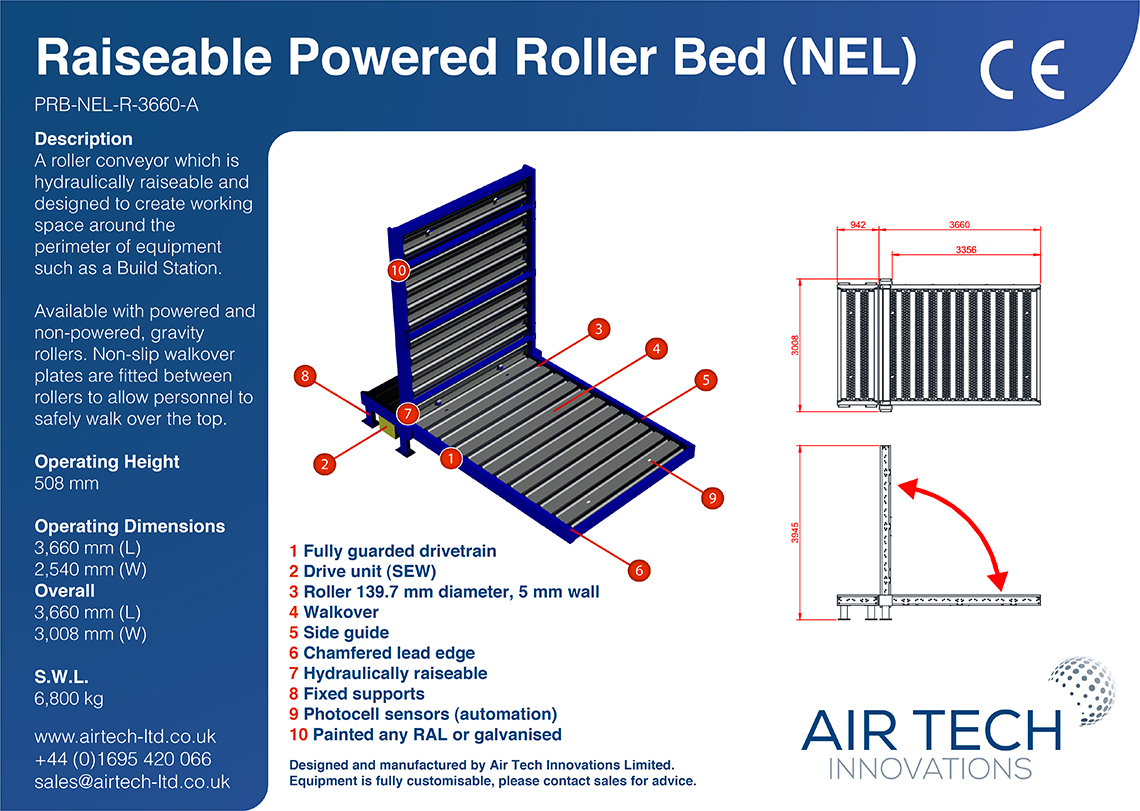

Raiseable Powered Roller Bed (NEL)

A roller conveyor which is hydraulically raiseable and designed to create working space around the perimeter of equipments such as a Build Station.

Available with powered and non-powered, gravity rollers. Non-slip walkover plates are fitted between rollers to allow personnel to safely walk over the top.

Features:

  • Fully guarded drivetrain
  • Drive unit (SEW)
  • Roller 139.7mm diameter, 5 mm wall
  • Walkover
  • Sideguide
  • Chamfered lead edge
  • Hydraulically raiseable
  • Fixed supports
  • Photocell sensors (automation)
  • Painted any RAL or galvanised

Operating Height:

508 mm

Operating Dimensions:

  • 3,660 mm (L)
  • 2,540 mm (W)

Overall:

  • 3,660 mm (L)
  • 3,008 mm (W)

S.W.L.

6,800 kg

Interested in our Raiseable Powered Roller Bed? Contact Us Today!
