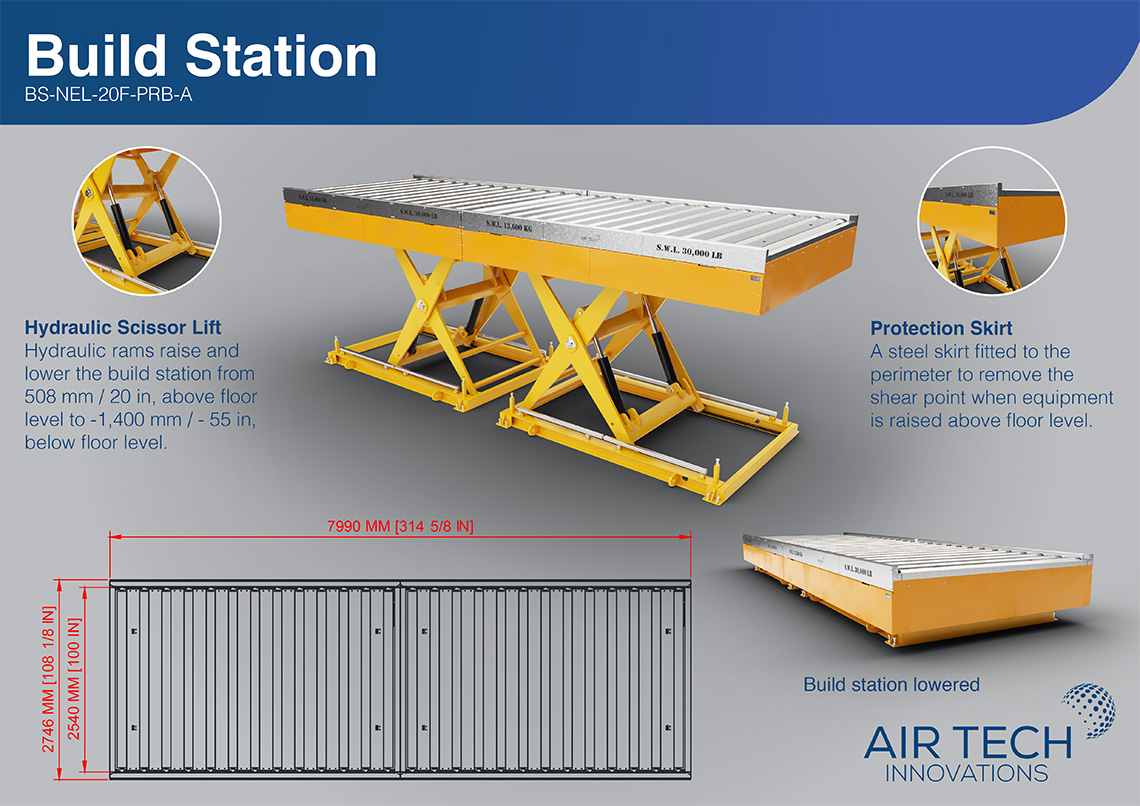

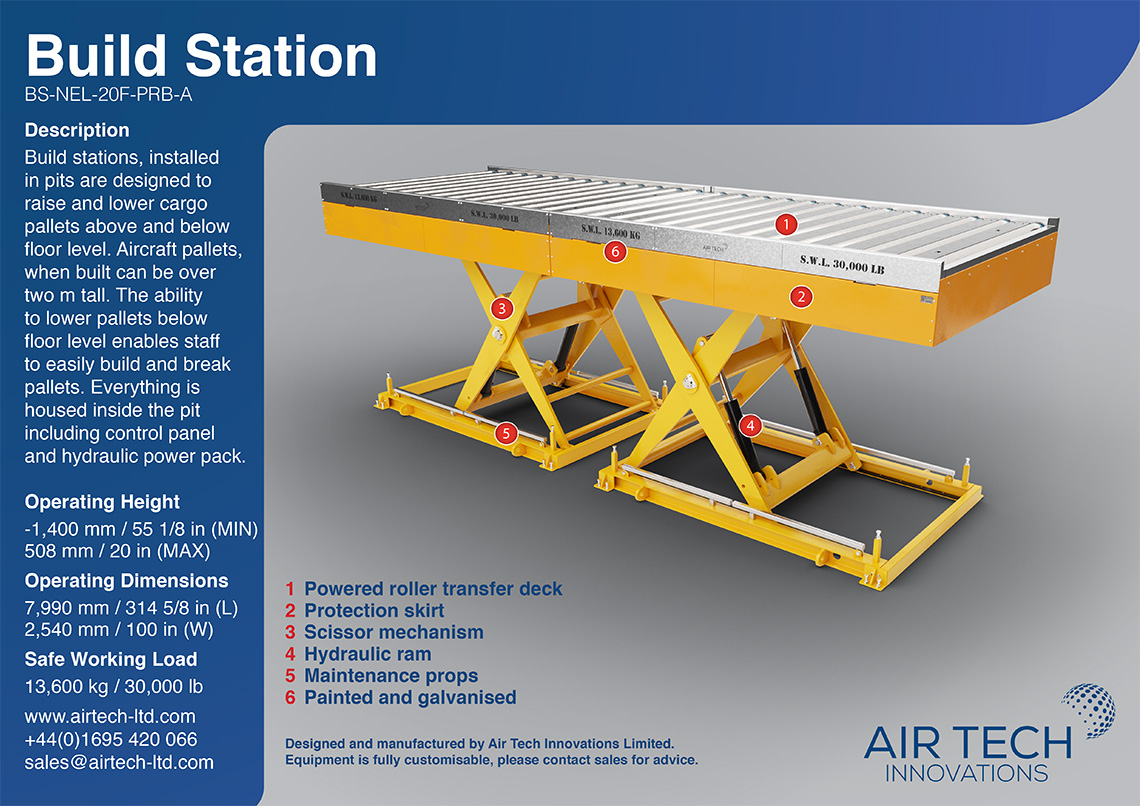

Build Station (20 FT.)
Build Stations, installed in pits, are designed to raise and lower cargo pallets above and below ground level. Aircraft pallets, when built can be over 2m tall. The ability to lower pallets below ground level allows for staff to easily build and break pallets without access equipment. Everything is housed inside the pit including control panel and hydraulic power pack.
Operating Height:
+ 508 mm AGL to
- 1,400 mm BGL
Operating Dimensions
- 7,200 mm (L)
- 2,540 mm (W)
Overall (including pit)
- 7,640 mm (L)
- 3,966 mm (W)
S.W.L
13,600 kg
