Truck Dock Solutions for Efficient Cargo Management
Designed to move air cargo from vehicle to system height, a truck dock is vital for most cargo operations. Fitted with operator walkways and roller top deck, personnel are protected and have a great view of operations. Complete with side-shift allowing for 150 mm +/- lateral movement to adjust for slight vehicle misalignment.
Operating Height
508 mm / 20 in (MIN)
1,600 mm / 63 in (MAX)
Operating Dimensions

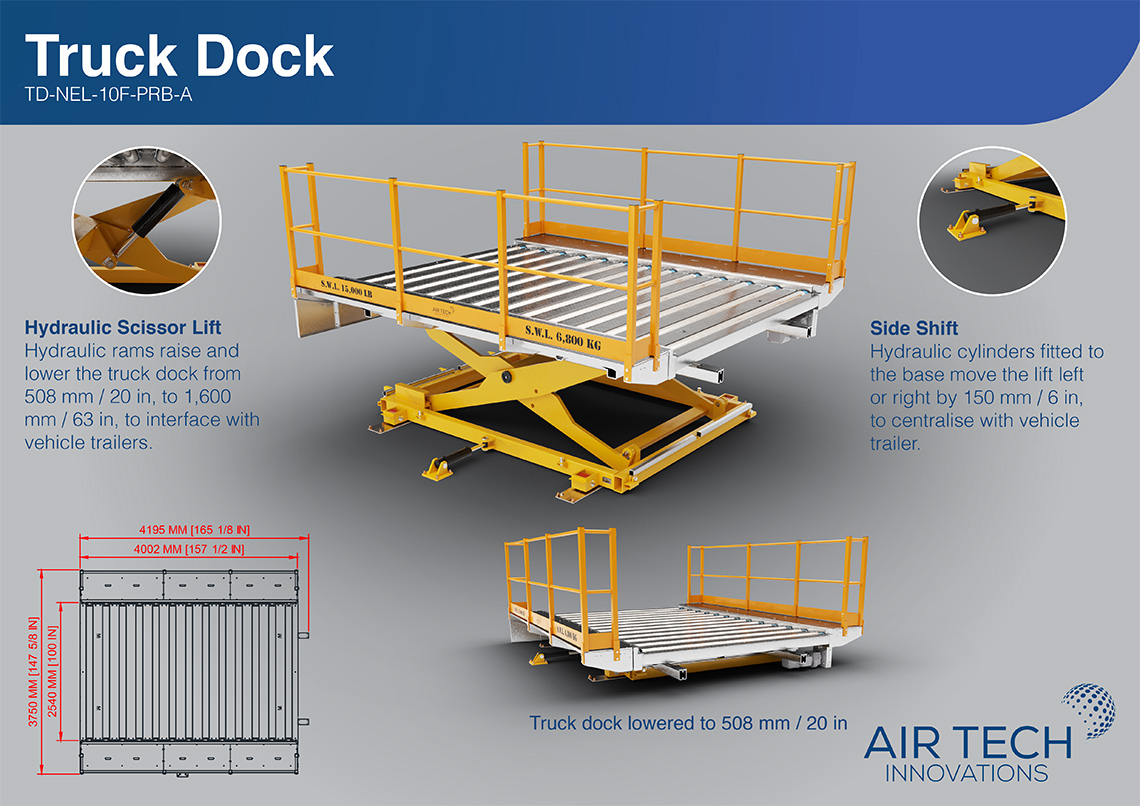

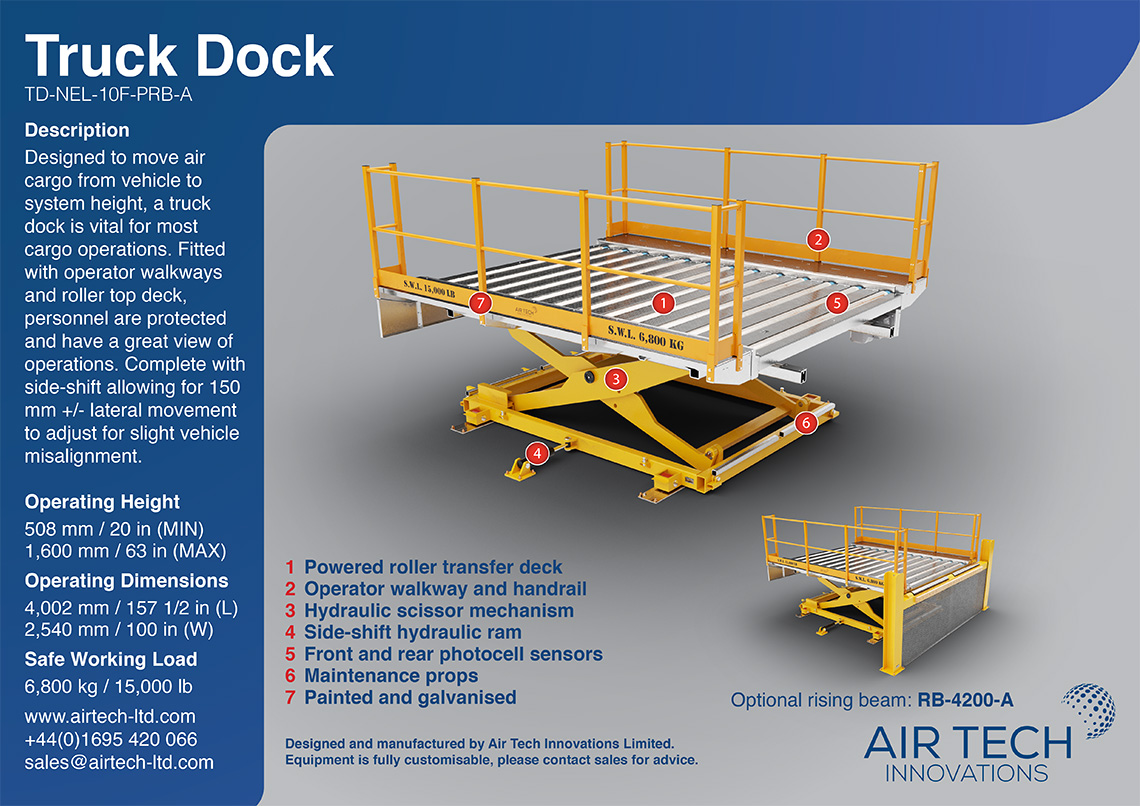

TD-NEL-10F-PRB-A
4,002 mm / 157 1/2 in (L)
2,540 mm / 100 in (W)

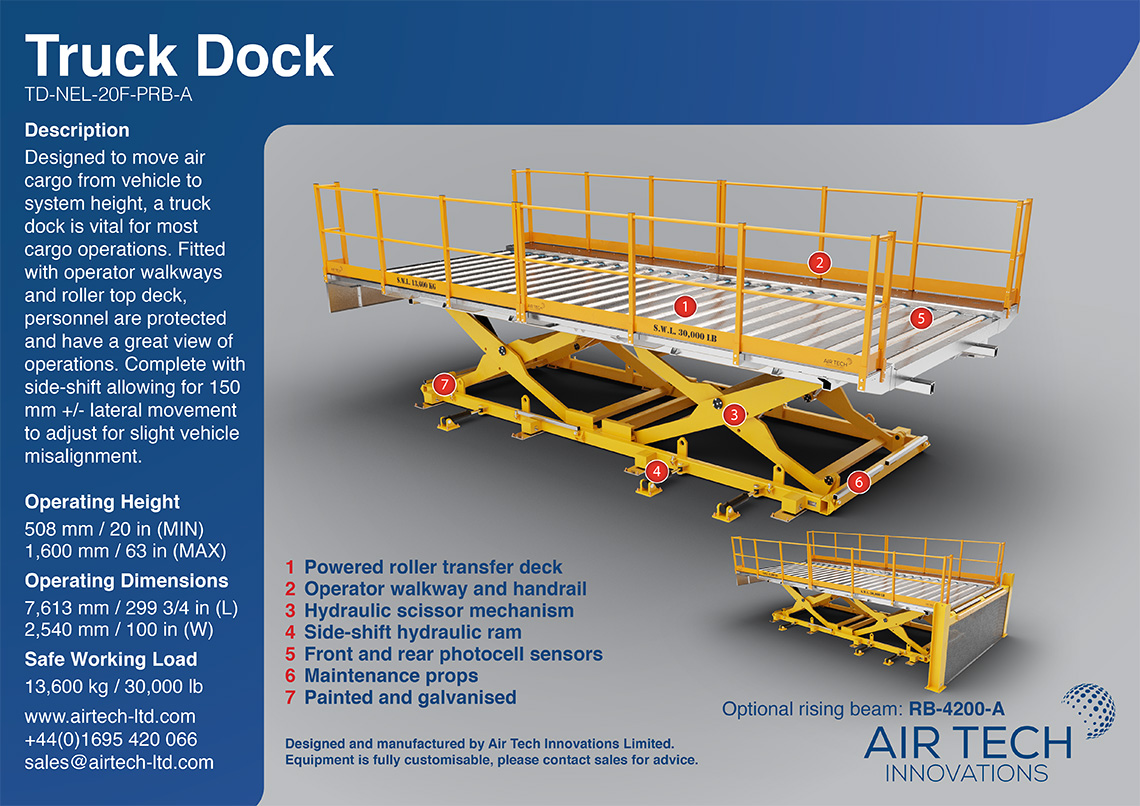

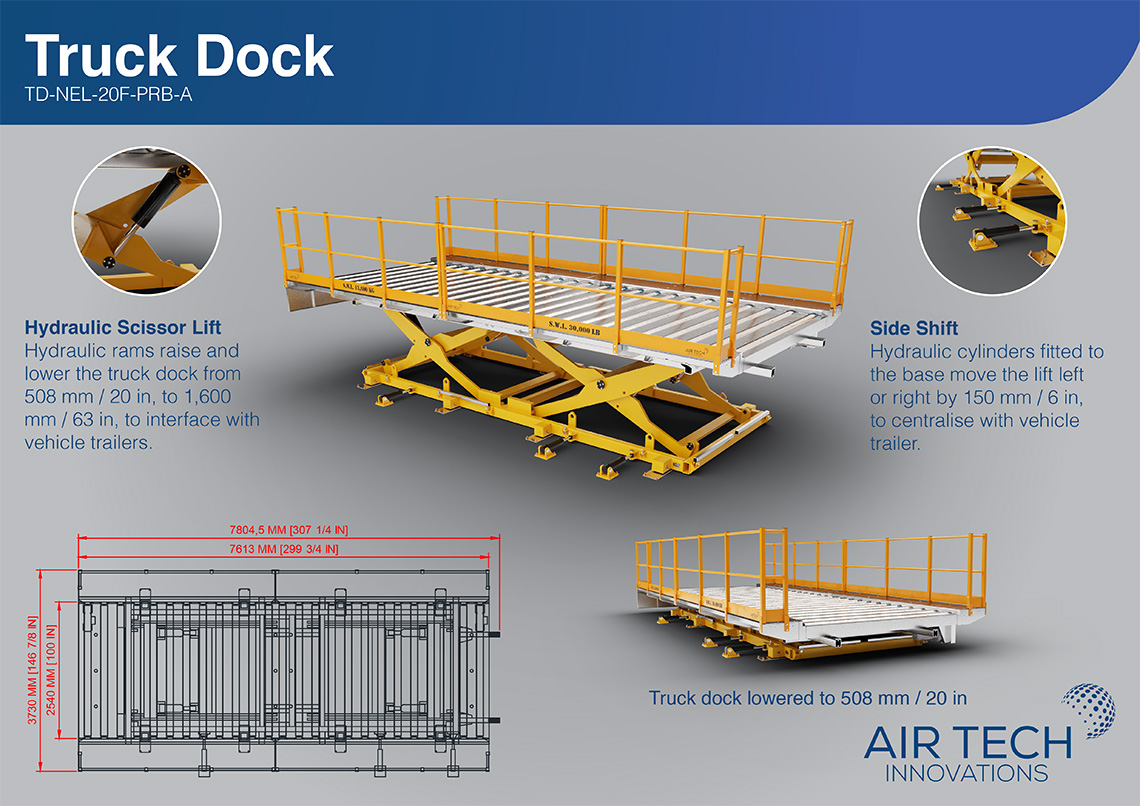

TD-NEL-20F-PRB-A
7,613 mm / 299 3/4 in (L)
2,540 mm / 100 in (W)
Safe Working Load
TD-NEL-10F-PRB-A
6,800 kg / 15,000 lb
TD-NEL-20F-PRB-A
13,600 kg / 30,000 lb
