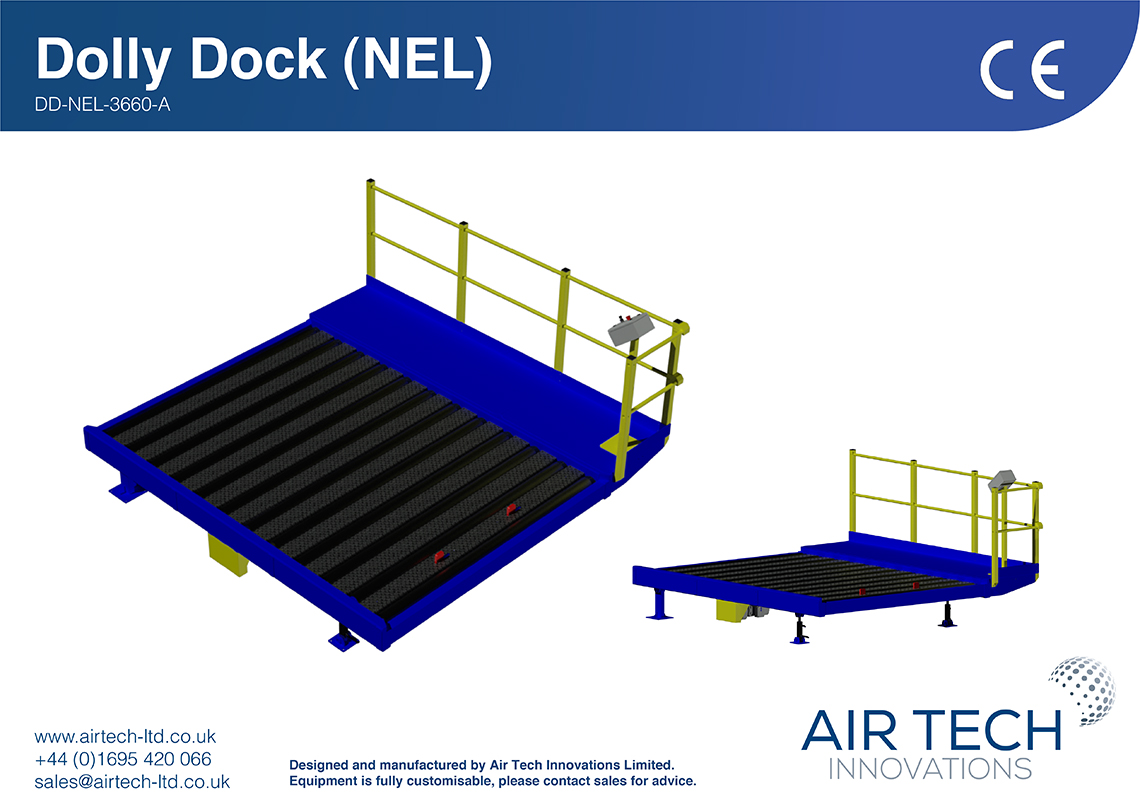

A3 DD-NEL-3660-A Image_300-01_1140px72dpi.jpg

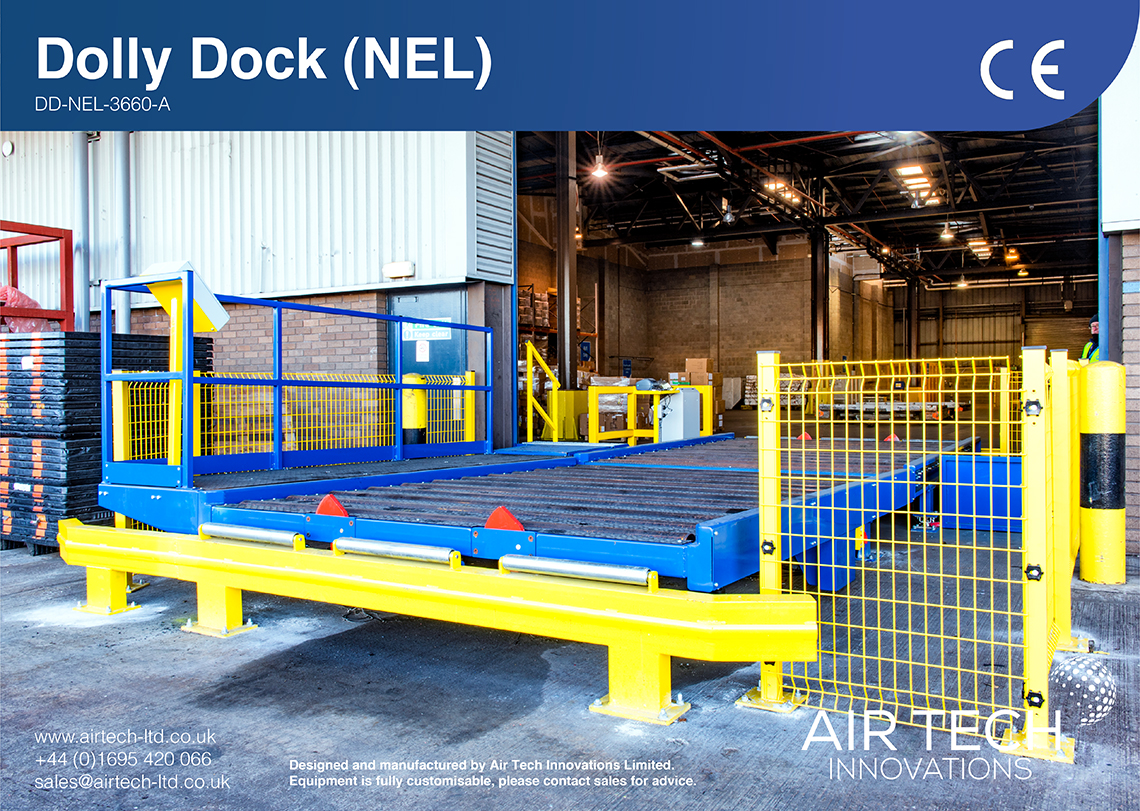

A3 DD-NEL-3660-A Photo_300-01_1140px72dpi.jpg

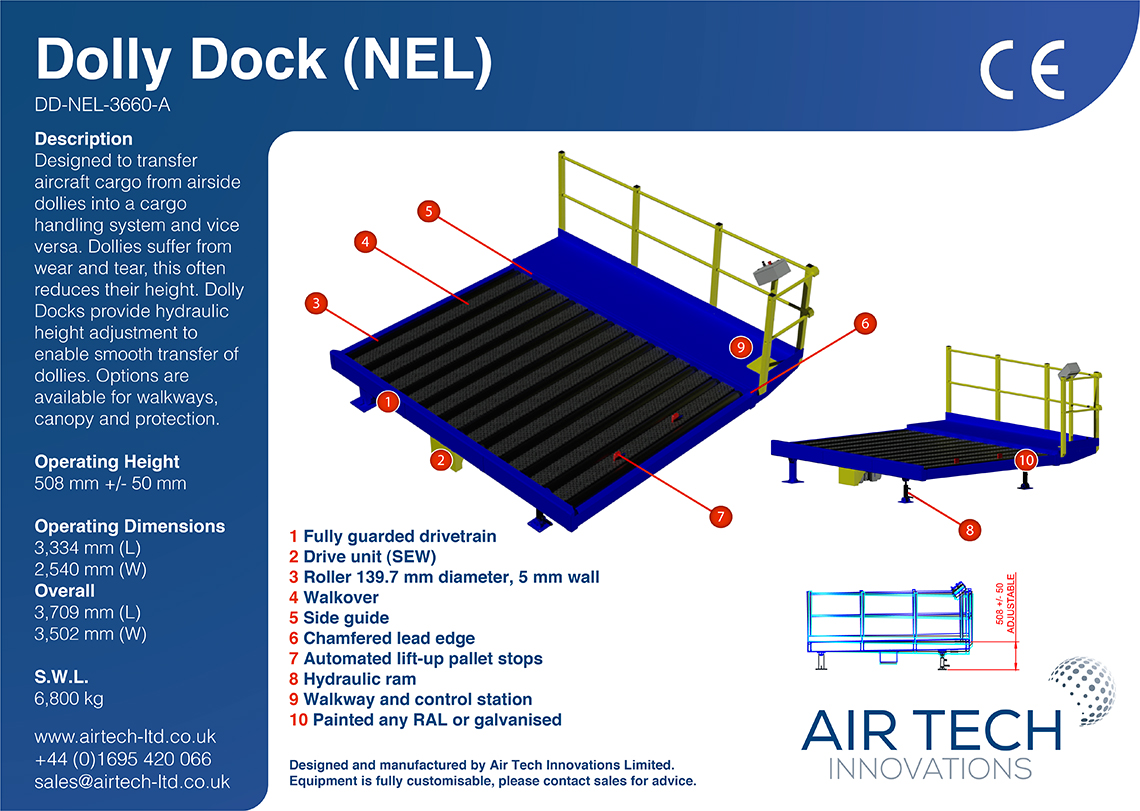

A3 DD-NEL-3660-A Specifications_300-01_1140px72dpi.jpg

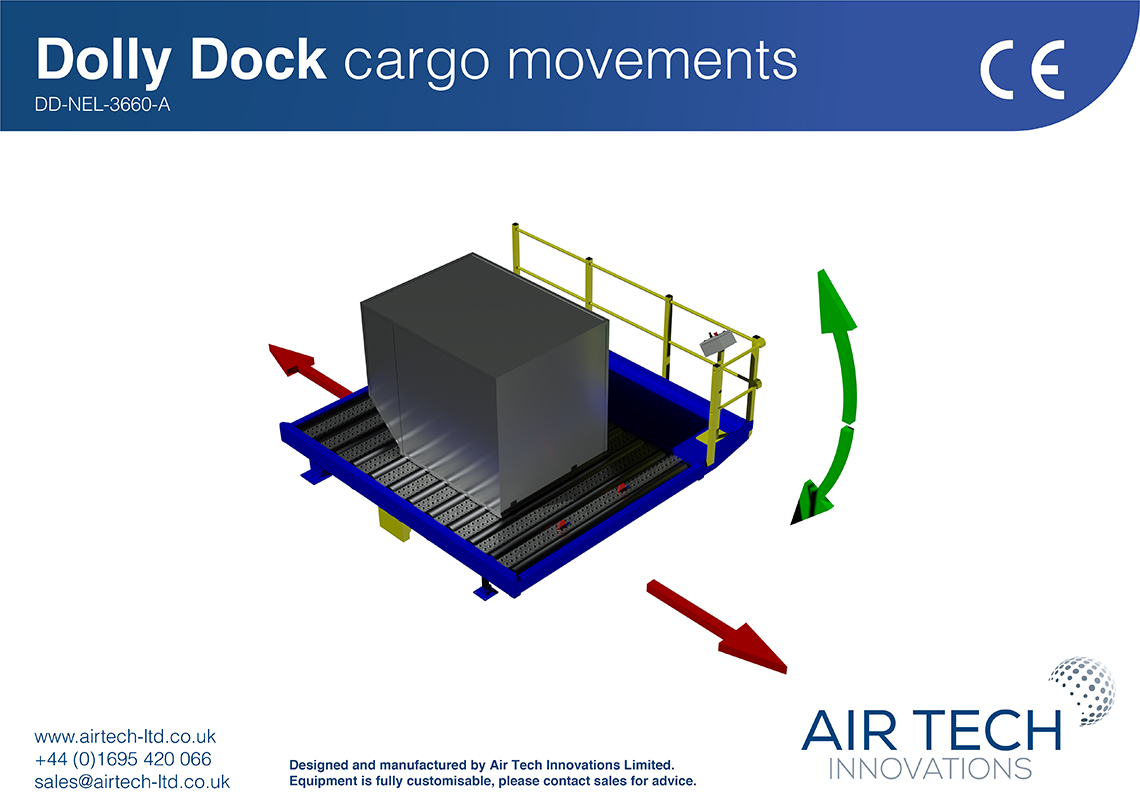

A3 DD-NEL-3660-A CM_300-01_1140px72dpi.jpg

Dolly Dock (NEL)

Designed to transfer aircraft cargo from airside dollies into a cargo handling system and vice versa. Dollier suffer from wear and tear, this often reduces their height. Dolly Docks provide hydraulic height adjustment to enable smooth transfer of dollies. Options are available for walkways, canopy and protection.

Operating Height:

508 mm +/- 50 mm (hydraulic adjustment)

Operating Dimensions:

3,334 mm (L)
2,540 mm (W)

Overall Dimensions:

3,709 mm (L)
3,502 mm (W)

S.W.L

6,800kg

Interested in our Dolly Dock? Contact Us Today!
